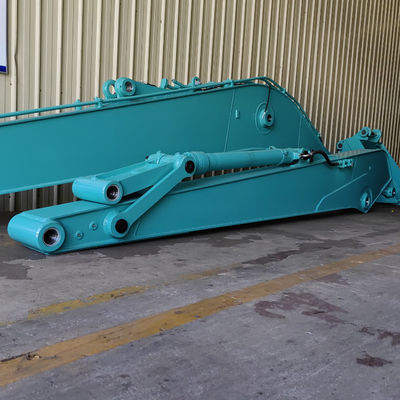

Custom Excavator Long Reach Kobelco Attachments Boom Stick with Bucket and Cylinder
For more products:
Product Presentation of Excavator Boom
It is precise because the standard arm length of excavators cannot meet certain working conditions, so more and more excavators use extended arms to fill this gap, such as foundation engineering for deep pit operations, building demolition for high-altitude operations or river cleaning, etc. The construction and maintenance of the field must use the extended arm to efficiently and quickly complete the various indicators required by the project.
River dredging
The continuous expansion of cities and the demolition of old urban areas. For the sake of safety, the government did not demolish the relatively lower floors by blasting but chose three sections of extended arms for demolition. The three-section extended arm adds a section of the middle arm on the basis of the original two-section extended arm. The middle arm can protect the safety of the driver to a large extent. The three-stage extension arm is working with a hammer or hydraulic shears
| Material Use |
Q345B, Q550D, Also can customize to customer requirements |
| Product Warranty Period |
6 months,9 months,1 Year |
| Product Size |
Most lengths can be 34M, According to customer requirements, Any excavator model |
Advantages of Zhonghe Excavator Long Arm
1. Less maintenance
Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision pipelines, graphite alloy copper sleeve, and strong but light bucket cylinder.
2. Strong and sturdy
Built-in reinforcing ribs. Professional welding skills towards the different bearing positions. Groove preparation(45° edge-mining) before welding.
3. Tolerance within 5-10um
Hole drilling tolerance is within 5-10um, ensure accuracy.
4. Reach deeper and higher
The max work range and the max digging height are larger as the angle of the boom and arm can reach 163 degrees.
5. High work efficiency and saving fuel
Lighter while taking into account the quality, not only ensures work efficiency but also saves fuel.
6. Fillet weld testing
We can determine the quality of a fillet weld joint by performing NDT and mechanical testing. Macro examinations and fillet fracture tests give a good view of the profile, fusion, and penetration, and reveal whether there are any imperfections, such as porosity or inclusions, in the weld. These tests are used to test the welder’s ability to weld a fillet weld.
What Zhonghe Can Do
Custom made:
1. Applicable to all brands of excavators.
2. Color, length, material can be made according to you.
3. Additional piping can be added to accommodate some additional applications.
4. Boom cylinders and stick cylinders can also be provided according to customer needs.
Strong production capacity:
We can produce 50 sets of excavator arms per month.
The annual output is 600 sets of various types of excavator arms.
Good service:
1. Online support within 24 hours.
2. Make an appointment for video technical support.
(Our engineers focus on excavator arms and attachments for more than 10 years)
3. The long arm of the excavator should be a two-section/three-section joint, which can be loaded into a container to save freight.
Warranty:
1 year for the long arm, 180 days for the cylinder and connecting rod, 90 days for the bucket.
All parts you needed are included.
Long Reach Kits Are Fully Compatible with ZHONGHE Excavator Standard Buckets, and Cylinder.
|
Excavator long boom
|
Excavator long arm
|
Standard bucket
|
|
Linkage kit
|
Bucket cylinder
|
Butter hose
|
|
Pin
|
Lubricating system
|
Seals
|
Specification of Excavator Boom Arm
Weight
|
Model
|
Part Length
|
Total length(m)
|
Weight(kg)
|
Maximum removal height(m)
|
| Total Length(mm) |
25T |
8.5 |
16 |
2800 |
16M |
| Boom(A)(mm) |
2.3 |
900 |
| Arm(b)(mm) |
5.2 |
1700 |
| Maximum Digger Radius(C)(mm) |
30T |
9.5 |
18 |
3000 |
18M |
| Maximum Digger Depth(C)(mm) |
2.3 |
1000 |
| Maximum Unloading Height(E)(mm) |
5.2 |
1950 |
| Maximum Digger Height(F)(mm) |
35T |
10.5 |
20 |
3500 |
20M |
| Bucket Volume(m³) |
2.3 |
1100 |
Company Strength
Kaiping Zhonghe Machinery Manufacturing Co., Ltd, is a manufacturing and trading combo that specializes in customizing different kinds of excavator boom arms and attachments We have more than 14000m' steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more than 60 experienced technical staff, 30 welding workers with over 7 years of experience, 15 senior designers, and a high-tech R&D team.
Our annual output of various types of excavator boom arms can reach 600 sets. We supply products with high quality and moderate prices, which sell well in more than 40 countries and areas.
We adhere to" Merit Quality, Sincerity Management, and Customer Satisfaction", and honestly greet customers from home and abroad to negotiate and cooperate with us.
FAQ of excavator long arm
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middle sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save you cost.
Q2: How long is the boom arm can min excavator be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, the 30-40 excavator longest arm suggests to be 8 meters, and can configure 0.1 cbm bucket, with no need for an extra counterweight. 55 excavator's longest arm suggests to be 12 meters, which can configure 0.1-0.15 cbm bucket, which needs 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend the boom arm to longes the t length as mini excavator is easy to slosh.
Q3: How long will it take tall an excavator long reach boom?
It depends on the installer and machine size.
Usually disconnecting the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, use to prepare several containers to fill the oil before disassembling.
